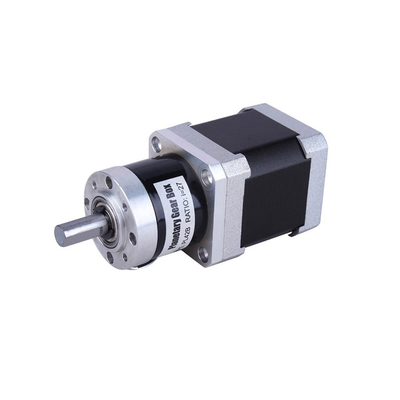

Enclosed Hybrid Gear Reducer Stepper Motor NEMA17 Gearbox Motor Geared NEMA 17 Stepper Motor For CNC Machine

1 piece
MOQ
Enclosed Hybrid Gear Reducer Stepper Motor NEMA17 Gearbox Motor Geared NEMA 17 Stepper Motor For CNC Machine
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Warranty: 3months-1year
Model Number: 42HSG
Phase: 2
Type: Hybrid, Nema 17 Stepper motor
Product name: Gear reducer stepper motor
Shaft: D-cut / keyway / round
Application: CNC Machine
Frame Size: 42*42mm
Usage: Industrial
Protect feature: Enclosed
Function: Control
Key words: Gear stepper motor
Informação básica
Model Number: 42HSG
Condições de Pagamento e Envio
Packaging Details: Layers of packaging are more secure and faster, strict packing to ensure the safety and integrity of the motor.
Supply Ability: 50000 Piece/Pieces per Month
Descrição de produto
Geared stepper motor stepping motor nema 17 with planetary gearbox reducer
Product Description
Noted: If this motor do not match with your request, pls feel free to contact with us, we can make customized shaft / winding / mounting flange / cable / connector / brake / encoder / gearbox and others
Type
Nema 17 Stepper motor
Shaft
D-cut / keyway / round
Application
CNC Machine
Frame Size
42*42mm
Usage
Industrial
Protect feature
Enclosed
Function
Control
Key words
Gear stepper motor
Nema 17 Planetary Gearbox Stepping Motor / 42mm
PL42-B Specification
PL42-B Specifications
First stage
Second stage
Third stage
Gear ratio
3.71、5.18
14、19、27
51、71、100、139
L1 Length(L1)
mm
31
38.5
48.2
Rated load
N.m
1.8
3
4.8
Max load
N.m
5.3
8.9
14
Effiency
%
90
81
73
Blacklash
arcmin
≤60
≤75
≤90
Weight
Kg
0.2
0.25
0.3
Rated input speed
rpm
3000
3000
3000
Max input speed
rpm
5000
5000
5000
Protection class
IP
65
65
65
Lubrication
grease（lifelong Lubrication）
grease（lifelong Lubrication）
grease（lifelong Lubrication）
Noise
dB
≤45
≤45
≤45
Life
h
~20000
~20000
~20000
PL42-B Dimensions(mm)
PL42 Specification
PL42 Specifications
First stage
Second stage
Gear ratio
4,5,7,9,10
16,20,25,28,35,36,40,45,49,50,53,70,81,90,100
Length
mm
42
52
Rated load
N.m
3.5
15
Max load
N.m
6
25
Effiency
%
95
90
Blacklash
arcmin
≤15
≤25
Weight
Kg
0.4
0.6
Rated input speed
rpm
3000
3000
Max input speed
rpm
5000
5000
Protection class
IP
65
65
Lubrication
grease（lifelong Lubrication）
grease（lifelong Lubrication）
Noise
dB
≤45
≤45
Life
h
~20000
~20000
PL42 Dimensions(mm)
Remark： L1 is gearbox length, L2 is stepper motor length.Step motor parameters are shown below
Nema 17 stepper motor specifications
Model No
Step Angle（°）
Rated Voltage（V）
Rated Current （A）
Phase Resistance（Ω）
Phase Inductance (mH)
Holding Torque (Kg.cm)
Motor Length (mm)
Leads No.
Motor Weight（Kg）
42HS29-0804
1.8
2.3
0.8
2.9
3
1.8
29
4
0.16
42HS34-0306
1.8
10.3
0.3
34.2
25.5
2.2
34
6
0.22
42HS34-0404
1.8
12.0
0.4
30
35
3.2
34
4
0.22
42HS34-0844
1.8
4.8
0.84
5.75
8
2.8
34
4
0.22
42HS34-1704
1.8
2.2
1.7
1.3
1.8
2.8
34
4
0.22
42HS40-0404
1.8
12.0
0.4
30
60
4.2
40
4
0.28
42HS40-0804
1.8
5.4
0.8
6.8
12
4.5
40
4
0.28
42HS40-1204
1.8
6.6
1.2
5.5
11
5.2
40
4
0.28
42HS40-1684
1.8
2.8
1.68
1.68
3.4
4
40
4
0.28
42HS40-1704
1.8
3.4
1.7
2
3
4
40
4
0.28
42HS40-1206
1.8
4.0
1.2
3.3
3.5
2.97
40
6
0.28
42HS48-0404
1.8
12.0
0.4
30
45
4.5
48
4
0.38
42HS48-1004
1.8
4.5
1
4.5
10
5
48
4
0.38
42HS48-1304
1.8
4.6
1.3
3.5
6.6
5.5
48
4
0.38
42HS48-1504
1.8
4.2
1.5
2.8
5.5
5.5
48
4
0.38
42HS48-1684
1.8
3.4
1.68
2
3.8
5.2
48
4
0.38
42HS48-0406
1.8
12.0
0.4
30
28
3.2
48
6
0.38
42HS52-1504
1.8
4.5
1.5
3
7
6.8
52
4
0.45
42HS60-1504
1.8
3.8
1.5
2.5
6
7
60
4
0.55
Nema 17 dimensions(mm)
Motor Application:
Stepper motors are widely used in engraving machine, cutting plotter, textile machine, 3D printer, medical devices,stage lighting equipment, robot, CNC machine, music fountain and other industrial automatic equipment.
Customized Design
Packing & Delivery

Packing

Layers of packaging are more secure and faster, strict packing to ensure the safety and integrity of the motor.

Delivery

Shipping can be arranged as per your requirements. Air and sea transportation are both acceptable.
Company Profile
Changzhou Maples Precision Electromechanical Co., Ltd is located in Changzhou close to Shanghai of China. It mainly sales hybrid stepper motors, stepper motor drives, brushless dc motors, brushless dc motor driver, and also agent servo motors, spindle motors, related drives, switching power supplies and accessories.
Our main goal is to become a professional supplier of mechanical and electrical products and provide customers with perfect after-sales service.
We have a professional technical team, who have extensive experience in the design and development of motor and motor drive products. We provide customers with a full range of services, including product customization and technical consultation. We have advanced equipment and experienced engineers that ensure our products meet customer needs and requirements. Our products are widely used in medical, industrial, commercial, and consumer applications. We strive to provide our customers with the highest quality products and services. We have a strict quality control system to ensure our products meet the industry standards. We are committed to providing our customers with the highest level of customer service. Our sales team is professional, knowledgeable, and dedicated to helping our customers achieve their goals.
FAQ
Q1: How to choose the suitable stepper motor?
A: There are several important items: size, length of stepper motor, holding torque, voltage, current etc. After confirm some them and told us, we can send you the suitable one.
Q2: Any other methods to finalize the model?
A: Sure, you can send us the model you are using, we can help you find the suitable one.
Q3: When can I get the drawing of stepper motor?
A: We will provide drawings of stepper motor after you place the order.
