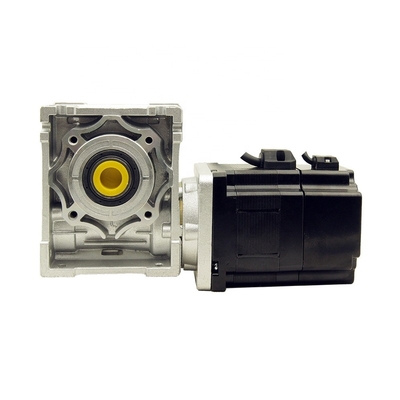

Name: NEMA34 Worm Geared Stepper Motor With Brake 3.3Nm/4.5Nm/8.5Nm/12Nm Step Worm Reducer 5:1/7.5:1/10:1/15:1/20:1 /25:1/80:1/100:1 NEMA34 worm gear stepper motor with brake
Brand: NEMA34 Worm Geared Stepper Motor With Brake 3.3Nm/4.5Nm/8.5Nm/12Nm Step Worm Reducer 5:1/7.5:1/10:1/15:1/20:1 /25:1/80:1/100:1 NEMA34 worm gear stepper motor with brake
SKU: NEMA34 worm geared stepper motor with brake
Price: 86.62 USD
Availability: InStock
Rating: 4.7 (175 reviews)

NEMA34 Worm Geared Stepper Motor With Brake 3.3Nm/4.5Nm/8.5Nm/12Nm Step Worm Reducer 5:1/7.5:1/10:1/15:1/20:1 /25:1/80:1/100:1 NEMA34 worm gear stepper motor with brake

10 Pieces

MOQ

$86.62(10 - 99 Pieces) $86.09(100 - 499 Pieces) $85.27(>=500 Pieces)

preço

Características Galeria Descrição de produto Peça umas citações

Características

Especificações

Warranty: 3months-1year

Model Number: NEMA34 worm geared stepper motor with brake

Phase: 2

Type: Hybrid

Current / Phase: 4.2-6.0A

Motor holding torque: 3.3Nm/4.5Nm/8.5Nm/12Nm

Worm gear ratio: 5:1/7.5:1/10:1/15:1/20:1/25:1/30:1/40:1/50:1/60:1/80:1/100:1

Brake type: Permanent magnet DC24V power off brake

Matched driver: JB860C/JB2811M/JB2522M

Service: Customization

Informação básica

Model Number: NEMA34 worm geared stepper motor with brake

Condições de Pagamento e Envio

Packaging Details: Carton

Descrição de produto

If you need 3D model of the motor, please give us your email address and we will email you it.

Specifications

Model	Length L(mm)	Motor Holding Torque (N.m)	Current (A/Phase)	Resistance (Ω)	Inductance (mH)	Motor Rotor Inertia (g.cm²)	Brake Torque (N.m)	Weight (kg)	Gear Ratio	Matched driver
86HSWGB65A442	227	3.3	4.2	1.4	3.9	1000	8.5	5.1	5:1 7.5:1 10:1 15:1 20:1 25:1 30:1 40:1 50:1 60:1 80:1 100:1	JB860C JB2811M JB2522M
86HSWGB80A460	242	4.5	6.0	0.8	3.4	1400		5.7
86HSWGB118A460	280	8.5	6.0	1.2	6.0	2700		7.2
86HSWGB156A460	318	12	6.0	1.25	8.0	4000		8.8

Other gear ratio is acceptable, the brake is DC24V power-off brake, other voltage can be customized as required.

Dimension unit:mm

Wiring Diagram

Note:

When installing the motor, be sure to fix the position by using the front end cover of motor, and pay attention to the tolerance, strictly guarantee the concentricity of the motor shaft and the load.
