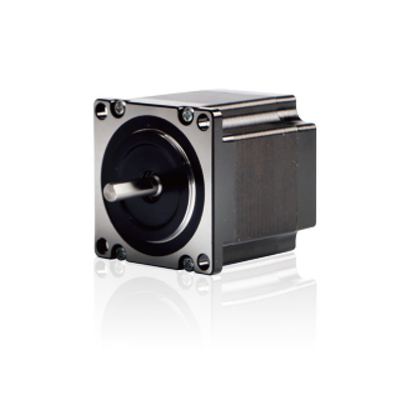

Hot Sales CE ROHS 3A 1N.m 2 Phase 57mm Single Axis DC Hybrid Step Motor and Driver Driver Kit for Laser Machine XZ57QB10

1 set
MOQ
Hot Sales CE ROHS 3A 1N.m 2 Phase 57mm Single Axis DC Hybrid Step Motor and Driver Driver Kit for Laser Machine XZ57QB10
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Warranty: 3months-1year
Model Number: XZ57QB10
Phase: 2
Type: Hybrid
Current / Phase: 3A
Package: Paper Box
Certificação: RoHS CE ISO9001
Product Name: DC stepper step motor
Model: XZ57QB07
Ambient Temperature(°C): -20℃~ +50℃
Shaft: Single Shaft
Motor Length(mm): 55
Shaft diameter(mm): 8
Phase Resistance(Ω): 0.86
Weight(kg): 1.9
Informação básica
Certificação: RoHS CE ISO9001
Model Number: XZ57QB10, XZ57QB07
Condições de Pagamento e Envio
Packaging Details: Paper Box
Descrição de produto
Product Description
Stepper motor is an open-loop control motor that converts electrical pulse signal into angular displacement or linear displacement. It is the main actuator in modern digital program control systems, which is normally used for CNC, dispenser, laser cutting machine, engraving machine, marking machine, medical equipment, and automatic assembly equipment, etc.
XZ57QB10
Certification standards:
Number of phase: 2 Step Angle accuracy: Plus or minus 5% The IP rating: 40 Certification: RoHS CE ISO9001 Insulation class: B (130 ℃) Operating ambient temperature: - 20 ℃ ~ + 50 ℃
Electrical parameters:
Motor type
Holding torque (N.m)
Body length(mm)
Axle diameter (mm)
Rated current (A)
Resistance (Ω)
Rated inductance (mH))
Rated voltage (V)
Rotor inertia (g cm2)




57
0.7N.m
45
8mm
3A
0.71Ω
1.9mH
2.1V
150g cm2
1N.m
 55
8mm
3A
0.86Ω
2.6mH
2.6V
300g cm2
1.5N.m
65
8mm
4A
0.76Ω
3.2mH
3V
400g cm2
1.8N.m
75
8mm
4A
0.9Ω
4.5mH
3.6V
480g cm2
2N.m
80
8mm
4A
0.97Ω
5.8mH
3.9V
500g cm2
2.2N.m
84
8mm
4A
1.02Ω
7mH
4.1V
530g cm2
2.5N.m
100
8mm
5A
0.75Ω
3.2mH
3.8V
700g cm2
3N.m
112
8mm
5A
0.81Ω
4.6mH
4.1V
800g cm2


Motor outline drawing:
Motor wiring：
1. When installing the motor, be sure to use the front end cover of the motor to install the stop position, and pay attention to
the cooperation, strictly ensure the concentricity of the motor shaft and the load. 2. When the motor is connected to the driver,
do not connect the wrong phase.

100% pure copper coil

- 3-layer high density molecular paint drip coating.
- Isolation of dust,life is 10 times that of ordinary coating

Silicon steel rotor

- World-class silocon steel
- Large torque
- Stable output
- Low noise
- Long life

International standard design

- Novel design and compact structure
- Easy installation and stable operation
- Large reduction ratio

Low motor noise

- Imported bearings, increase running frictional resistance
- Long-term carrying without deformation and noise
Usage scenario
