Casa /Produtos/Motor deslizante de alta temperatura/As Required 35mm Diameter Square Face Nema 14 Stepper Motor For 35mm Planetary Gearbox

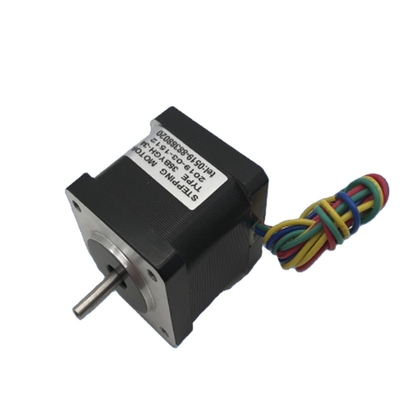

As Required 35mm Diameter Square Face Nema 14 Stepper Motor For 35mm Planetary Gearbox

1 set
MOQ
As Required 35mm Diameter Square Face Nema 14 Stepper Motor For 35mm Planetary Gearbox
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Warranty: 1 Year
Model Number: 35BYGH28-01A
Phase: 4
Type: Hybrid
Stepper Accuracy: ±5%
Color: Grey Black
Logo: HPS
Supply ability: 500000 sets per year
Delivery Time: Depends on order quantity
Payments Terms: LC/TT
Insulation Resistance: 100MΩMin 500VC DC
Length: 28mm
Mounting Position: Gearbox
Material of Shaft: As required
Certificação: ISO, CE
Informação básica
Certificação: ISO, CE
Model Number: 35BYGH28-01A
Condições de Pagamento e Envio
Packaging Details: standard export package
Descrição de produto
Product Overview


35BYGH28-01A







Applicable Industries
Manufacturing Plant, Automation industry
Customized support
OEM, ODM
Lead Wire
4
Length
28mm
Step Accuracy
±5%
Temoperature
85°C MAX
Insulation Resistance
100MΩMin 500VC DC
Dielectric Strength
500VAC 1 minute
Certification
ISO9001, CE
Brand Name
HPS
Model
35BYGH28-01A
Weight
0.12KG
Place of origin
Anhui, China
Material of Shaft
As required
Packing
Standard export package
Warranty
1 Year
Products Description
Model
35BYGH28-01A
Current(A)
0.8
Resistance(Ω)
5
Inductance(mH)
5
Max Static Torque(N.cm)
12
Rotor Inertia(g.cm²）
11
Working temperature(℃)
-20~+50
Why Choose Us

Company Advantages

We possess outstanding team, High precision technical equipment and many type of products. There are many types of motors that our planetary reducer can match. For example: Servo motor, stepper motor, bldc motor, brushless motor, electric motor, gear motor). Among them, servo motor and stepper motor are the two most widely used motor types for our company's reducer.
Application Field

Exhibition


HPS attends 5-6 exhibitions every year, both solar PV exhibitions and automation industry exhibitions, professional sales team and quality products build HPS a good reputation in the market.
Successful Project



Certifications
Product packaging
Package Type: Standard export packing & Wood pallets packing
FAQ
Q1：Are you manufacturer ?
A1：Yes, we are the manufacturer of gear motor and planetary gearbox.
Q2 : What specifications we need before you place an order?
A2 : Rated torque, Rated speed, IP Grade, mounting dimensions.
Q3 : What is the price ?
A3 : Price always depends on quantity, we offer range pricing.
