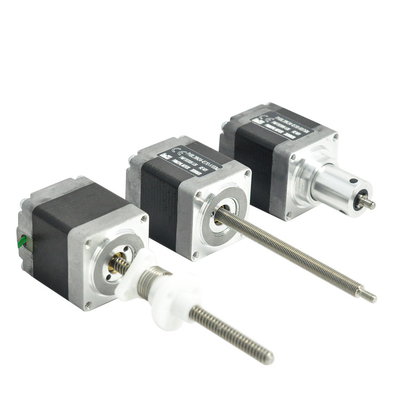

Primopal Hybrid Linear Shaft Stepping Screw Shaft Long Moving Electric Stepper Motor 20x20mm

10.0 pieces
MOQ
Primopal Hybrid Linear Shaft Stepping Screw Shaft Long Moving Electric Stepper Motor 20x20mm
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Warranty: 3months-1year
Model Number: PHB20Y34
Phase: 2, 2
Type: Hybrid
Current / Phase: DC 6A
Key words: NEMA8 linear stepper motor
VOLTAGR(V): 2.5-4.4
OEM&ODM: Welcome
Temperature Rise: 80 °
Lead Wire: 4
Ambient Temperature: -20 °C ~ +50 °C
Step Angle Accuracy: ±5% (full step, no load)
Length: 27.2-38.1
Frame Size: 20x20mm
Informação básica
Model Number: PHB20Y34
Condições de Pagamento e Envio
Packaging Details: Primopal 28mm Nema 11 Captive Hybrid Linear Actuator Screw Stepper Motor with Customized Service Packing: Carton / Pallet
Supply Ability: 200000 Piece/Pieces per Month
Descrição de produto
@Most of our customers require custom configurations in one form or another. If you are planning to replace a motor in an existing application, simply send us a drawing or sample and we can help you find a suitable replacement. Or, contact us and describe your application and one of our engineers will work with you to create a custom solution for you. @If you are not sure which stepper motor you need, there are several important criteria you need to consider such as holding torque, physical size (NEMA size, motor length, etc.), supply voltage, and supply current. Once you have identified these key criteria, we can find a suitable model for you.
Products Description
Primopal offers a unique line of Stepper Lead Screw Linear Actuators that open new avenues for equipment designers that require high performance and endurance in a small package. The various products convert the rotational movement of a stepper motor to linear motion, with the use of a lead screw and an engineered thermoplastic nut . This allows linear actuators to provide quiet, efficient, durable and cost effective linear motion solutions. These linear actuators are ideal for applications that require a combination of precise positioning, rapid motion and long life. The available stroke length is within 1000mm, minimum travel step resolution 0.0015mm, max thrust can over than 240kgs. Typical applications include X-Y tables, medical equipment, semiconductor handling, telecommunications equipment, valve control, and numerous other uses. Variety of customizations are available upon request, such as screw length, custom designed nuts, anti-backlash nut, safety brake, encoder and others.
General specification
Ambient Temperature
-20℃ — +50℃
Temperature Rise
80℃Max.(rated current,2 phase on)
Dielectric Strength
500 VAC for one minute
Insulation Resistance
Class B (Class F also available)
Electrical specification
Model
Voltage
Current
Resistance
Inductance
Lead Wire
Motor Length
(V)
(A)
(Ω)
(mh)
(pin)
inch
mm
PHBL20□30-4S05
2.5
0.5
5.0
1.2
4
1.1811
27.2
PHBL20□40-4S05
4.4
0.5
8.8
2.7
4
1.5748
38.1
Note:Non-captive type (N) or Extermal type (E) is availble, and please specify it with the black box when ordering.
Lead Screw Specs
Lead Code
Screw Dia
Lead
Trave/Step
inch
mm
inch
mm
inch
mm
AF
0.138
3.5052
0.012
0.3048
0.00006
0.001524
AA
0.138
3.5052
0.012
0.6096
0.00012
0.003048
B
0.138
3.5052
0.012
1.2192
0.00024
0.006096
G
0.138
3.5052
0.012
2.0
0.000395
0.01
M
0.138
3.5052
0.012
4.0
0.00079
0.02
T
0.138
3.5052
0.012
8.0
0.001575
0.04
Mechanical Dimension

Motor Coil

The motor wire is made of pure copper enameied wire and advanced winding and wire-passing technology.The copper wire is evenly distributed,the temperature rise of the motor is lower, and the deformation and noise are not caused by long-term carrying.

Silicon Steel Rotor

It adopts international silicon steel material bearing and is imported from german technology. The surface is coated with imported rotor rubber to prevent oxidationof silicon steel to reduce surface burrs after grinding.The torque of the motor in the line is larger, the output is more stable, the noise is lower,and the service life is longer

Motor staters Use Imported

coatings which can increase the service lift of magnets and reduce running noise and secondary palishing is adopted

without the stator anticorrosion coating

without the stator anticorrosion coating, prone to cariton,unsatble operation

Adding solid and increasing hody height can better protect
the interior, make the appearance more beautiful and use more durable.

jerry built bodies are prone to malfunction or damage
dyring transit and use.
Application
Company Profile
Production Process
Packing&Shipping
Exhibition
FAQ
Q: I need a non-standard motor for my application, can you help? A: Certainly, most of our customers request custom configurations in one form or another. If you plan on replacing a motor in an existing application, just send us a drawing or sample and we can help you find a suitable replacement. Alternatively, contact us and describe your application, our engineers will work with you to create a solution tailor-made for you.   Q: Do you have any products in stock? Can I order samples first?  A: We stock many of our standard models. If you would like to test a sample first, we are glad to send some your way. Of course we do not stock specialized motors. If you have special needs, please let us know and we will try our best to send you samples as soon as possible.    Q: How long should I expect the lead-time/delivery to be? A:  If you are ordering samples of standard models, we can usually have them shipped and delivered within 5 days by air. When requesting custom motors, please allow us a 4-5 week lead-time.   Q: How are your products delivered? A: We are very flexible with shipping and have dealings with most major courier services around the world. When placing an order, simply provide us a shipping address and contact information, we will handle the rest. If there is a forwarder or courier you prefer to use, just let us know and we will accommodate.   Q: What can you tell me about the quality of your motors?  A: Delivering quality products is an absolute priority for us at LDO. We have test procedures throughout the manufacturing process starting from individual components. If you need a specialized motor from us, we also augment our existing test plans with custom testing solutions. In the rare case that an issue does arise, we will work with you to solve any problems in a timely and transparent manner.   Q: Do you provide OEM services? Can I request my own logo? A: Yes, we can provide OEM services for volume production. Feel free to talk to us about your branding needs.
