Casa /Produtos/caixa de engrenagens do motor deslizante/Automatic Product China Manufacturer 1.1Nm 4.2A 2 Phase 6.35mm Shaft Hybrid Cheap 3D Printer Nema 23 Stepper Motor 57mm

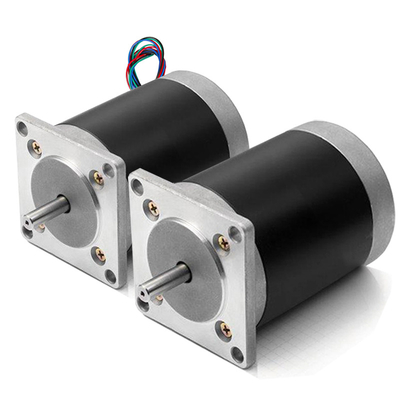

Automatic Product China Manufacturer 1.1Nm 4.2A 2 Phase 6.35mm Shaft Hybrid Cheap 3D Printer Nema 23 Stepper Motor 57mm

1 piece
MOQ
$17.78(1 - 9 pieces) $16.85(10 - 49 pieces) $13.99(50 - 99 pieces) $11.48(>=100 pieces)
preço
Automatic Product China Manufacturer 1.1Nm 4.2A 2 Phase 6.35mm Shaft Hybrid Cheap 3D Printer Nema 23 Stepper Motor 57mm
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Warranty: 3months-1year
Model Number: AK-57NEMA23HY7406
Phase: 2
Type: Hybrid
Current / Phase: 4.2A
Application: Automatic Product
Certificação: ISO001 CE ISO TUV Dakks D&B
Motor length: 76mm
Weight: 0.8Kg
Frame Size: 57*57mm
Rated Current: 4.2(A)
Shaft: 6.35mm Diameter X21mm length(customizable)
Phase Inductance: 1.4mH
Phase Resistance: 0.5Ω
Lead Wire: 4-wire
Informação básica
Certificação: ISO001 CE ISO TUV Dakks D&B
Model Number: AK-57NEMA23HY7406
Condições de Pagamento e Envio
Packaging Details: Support custom packaging
Supply Ability: 10000 Piece/Pieces per Day
Descrição de produto
Steps/Revolution:±5% Step Accuracy: 40N (9 Lbs.) Push 130N(30 Lbs.)Pull Radial : 70N(15.5 Lbs.)At End Shaft IP Rating: 40 Operating Temp:-20℃ to +50℃ Insulation Class:B,130℃ Insulation Resistance: 100 MegOhms
Model: NEMA 23 (57mmx57mm) stepper motor Type: Hybrid Phases: 2 Step Angle: 1.8° Holding Torque(N.m): 0.3N.m~1.1N.m Rated Current(A): 0.38A-4.2A Motor length: 41mm~76mm Leads: 4-leads or 6-leads Rotor Inertia(g.cm2): 60g.cm2~30g.cm2 Weight: 0.45kg~0.8kg Phase Resistance (Ω): 0.5Ω-32Ω Phase Inductance(mH): 1.4mH-28mH
Customized Service: Wires, flange, shaft, encoder, brake, gearbox, driver, and more.

NEMA 23(57mm) 2 Phase 1.8° Hybrid Stepper Motor-Standard Specifications
Series
Model
Rated Current(A)
Phase Resistance（Ω）
Phase
Inductance(mH)
Lead Wire
(NO.)
Holding Torque
(N.m)
Motor Length
(mm)
Rotor Inertia
(g.c㎡）
Motor Weight
(Kg)
Step Angle
(°）
23HY4607
0.38
32
28
6
0.3
41
60
0.45





1.8
23HY5481
1.4
2.5
6.2
4
0.62
51
118
0.6

23HY5627
1.4
2.6
3.2
6
0.45




23HY6496
2.5
1.2
3.0
4
0.8
56
145
0.65

23HY6669
1.2
5.0
6.8
6
0.6




23HY7406
4.2
0.5
1.4
4
1.1
76
230
0.8

23HY7671
1.6
3.2
4.5
6
0.8




Note:We can manufacture products according to customer's requirements
Suzhou ALKO Electronics Co., Ltd. was established in 2009 and is located in the beautiful Suzhou Industrial Park.We are an industry and trade company integrating design, research and development, and sales. The company specializes in "ALKO" independent brand industrial components parts, covering plastic products, hardware accessories, various spare parts, etc. The main products are Stepper Motor , Cam Lock, Industrial Hingle, Deep groove ball bearing, Stainless Steel Pipe Clamp, Drag chain, Isolation Column, Industrial caster wheel,Cable ties, Nylon washer, Industrial Leveling Feet Pad, industrial screws, etc., aims to provide customers with a complete overall solution for industrial parts.

We have an advanced design and development team, a mature and stable management system and perfect logistics export services，We have and strictly follow GB/T 19001, ISO 9001 quality management system certification operation, always adhere to the "quality first, customer first, quality service, abide by the contract" purpose, to provide one-stop service for the world.

The company can customize products and provide free sample services according to customer needs. The products are exported to ASEAN, the Middle East, North America, Europe, Latin America, Oceania, Africa, etc. The application fields involve: automobile,communication, construction, transportation, energy, machinery In various industries, the company wholeheartedly establishes win-win cooperation with you, develops together, and creates brilliance together.
1.Q:Are you factory or trading company ?
A: We manufacture and export, mean industries(factory+trading).

2.Q: What is the MOQ?
A:Some of the goods have stock with our brand . which not have MOQ.OEM or ODM , should discuss According to the actual conditions .

3.Q; Can you do the design for us?
A: Yes. We have a professional team having rich experience in design and manufacturing.

4.Q:CanI get a sample?
A:Of course,but you may need to pay sample charge which will be returned after any order signed.

5.Q:Whatcertificates your products have?
A:Most of our products have CC,CE,ISO and RoHS certificates. If you need others such as UL,PSE and so on, we can proceed them too.

6.Q:What's your delivery time?
A:Direct orders it can be within 7-15 days!.OEM/ODM products,15-25 days after confirming order,detail delivery date should be decided according to production season and order quantity.

7.Q:Which payment method do you accept?
A:We accept T/T,L/C,D/P D/A,MoneyGram,Credit

8.Q:About after-sales service?
A:General enquiries are handle within 24 hours .For anyquestion, please contact us immediately,weare going to offer our best service to you at anytimes.
