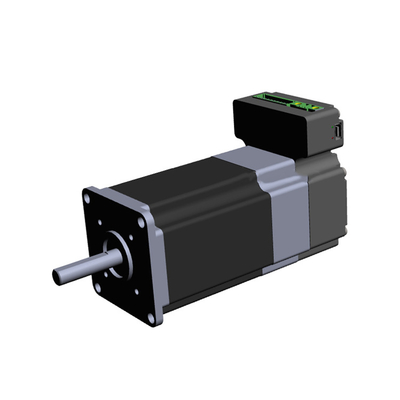

Other Servo Motor NEMA 23 Smart Automation Integrated Closed Circuit Stepper Motor

10 Pieces
Other Servo Motor NEMA 23 Smart Automation Integrated Closed Circuit Stepper Motor
Características Galeria Descrição de produto Peça umas citações
Model Number: IC57-22/IC57-10
Usage: BOAT, Car, Electric Bicycle, FAN, Home Appliance, Other, Industrial
Type: Intergrated motor
Torque: 2.2/1Nm
Construction: Permanent Magnet
Commutation: Brushless
Protect Feature: Other, Enclosed
Speed(RPM): 1500 rpm
Continuous Current(A): 0-8A
Efficiency: 90%
Certificação: RoHS
Function: Control
MOQ: 10
Package: Standard Package
Informação básica
Certificação: RoHS
Model Number: IC57-22/IC57-10
Condições de Pagamento e Envio
Packaging Details: Standard Package
Supply Ability: 50000 Piece/Pieces per Month 50,000pcs/month
Descrição de produto

Product Description

Datasheet of the integrated easy servo motor

IC57-22/IC57-10 smart automation stepper motor

Easy servo control technology to combine advantages of open-loop stepper systems and brushless

servo systems

Closed-loop controls to eliminate lose of steps, stall or movement synchronization

Integrated compact size for saving mounting space & setup time, and reducing electrical interference

1000-line integrated optical incremental encoder for accurate position control

High starting torque and quick response

Smooth motor movement with no vibration

Excellent respond time, quick acceleration, and very high high-speed torque (50% over open-loop)

Load-dependent dynamic current output from drive to motor to significantly motor heating deduction

Input voltage from 20 to 50 VDC; 8.0A peak current output from drive to motor

2.2 Nm or 1.0Nm holding torque stepper motor with NEMA 23 frame size installation

16 micro step resolution options via DIP switches; or any value from 200-51,200 (increased by 1) via

software configuration

Isolated control inputs of Pulse, Direction and Enable

No tuning for plug and play setup

In-position and fault outputs to external motion controllers for complete system controls.

Over voltage, over-current, and position-error protection

Operating Environment

Motor Specifications

Mechanical Specifications

RS232 Communication Cable Connections

Note1: The RS232 communication port is not isolated. Please use an isolated power

supply for the IC57xx when the PC s serial port is not isolated.

Note2: Do not plug or unplug the connector when power is on.
